Danfoss MCA 120
€290.00
International delivery
The individual quotation states the shipping method and costs for the item and destination.
Product description

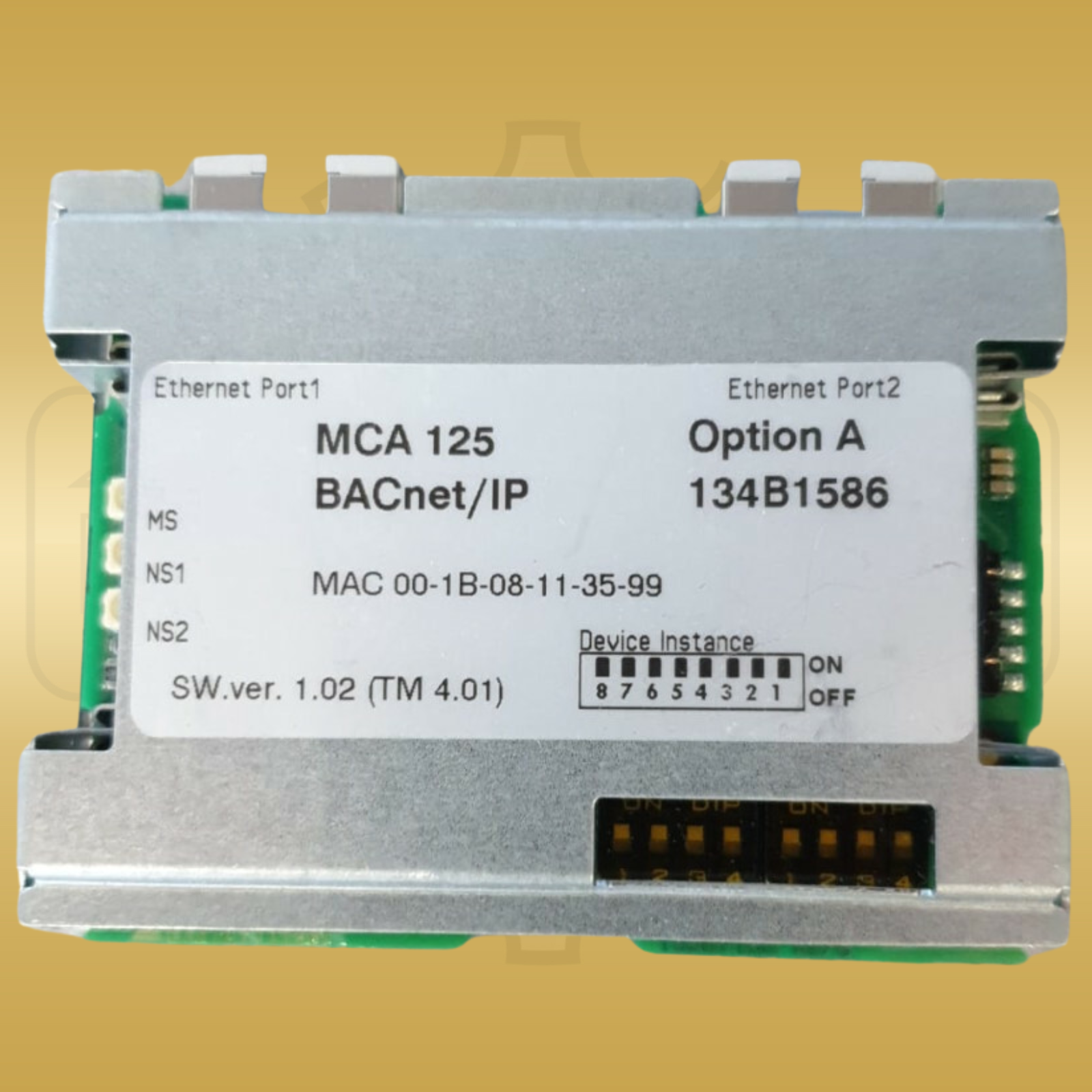

Danfoss order number 134B1586 identifies the conformal-coated VLT BACnet/IP MCA 125 fieldbus option. The compact module is designated as option A and has two Ethernet ports positioned directly on its housing. BACnet/IP and BACnet over Ethernet are specified for network communication. The two ports can be arranged in a line topology, while the detailed network configuration is set through the parameters of the associated VLT system. Three diagnostic indicators marked MS, NS1 and NS2 show module and network status. Its functions include COV, Read/Write Property Multiple, alarm and warning notifications, PID loop objects and segmented data transfer. Its device profile is identified as BACnet Advanced Application Controller, abbreviated B-AAC. A remote BBMD IP address can be entered for foreign-device operation. The exact article is distinguished by the manufacturer, complete order number 134B1586, MCA-125 designation and coated construction. Complete external dimensions are 80 × 30 × 60 mm in width × height × depth order. Product weight is 0.100 kg. Both values refer to the individual MCA-125 option module. Option slot A, two Ethernet ports, software version 1.02 and the available BACnet parameters provide additional technical identification points. The separate table keeps all values in a fixed order and places dimensions and weight in the final two rows.
The item supplied will have the stated manufacturer or type number and the stated condition category. Serial number, manufacturing date, labels, colour, packaging and normal signs of use or storage may differ. Specifications
Unless expressly confirmed, technical information is provided to identify the device type. The complete manufacturer or type number is decisive.
| Manufacturer | Danfoss |
|---|---|
| Product series | VLT BACnet/IP MCA 125 |
| Manufacturer / order / identification number | 134B1586 |
| Device type | BACnet/IP fieldbus option |
| Coating | Conformal coated |
| Network protocols | BACnet/IP and BACnet over Ethernet |
| Ethernet connections | 2 |
| Network topology | Daisy chain without external switch |
| Option slot | Option A |
| Software version | 1.02 |
| Recommended UDP port ranges | 47808–47826 and 49752–65535 |
| BBMD function | Foreign Device operation via remote BBMD IP address |
| BACnet profile | BACnet Advanced Application Controller (B-AAC) |
| COV function | Change Of Value |
| Property access | Read/Write Property Multiple |
| Notification function | Alarm and warning notifications |
| Control object | PID loop object |
| Diagnostic indicators | MS, NS1 and NS2 |
| Dimensions | 80 × 30 × 60 mm (W × H × D) |
| Weight | 0.100 kg |
